Bone marrow-derived mesenchymal stem cells promote growth and angiogenesis of breast and prostate tumors
© Zhang et al.; licensee BioMed Central Ltd. 2013
Received: 13 January 2013
Accepted: 3 June 2013
Published: 13 June 2013
Mesenchymal stem cells (MSCs) are known to migrate to tumor tissues. This behavior of MSCs has been exploited as a tumor-targeting strategy for cell-based cancer therapy. However, the effects of MSCs on tumor growth are controversial. This study was designed to determine the effect of MSCs on the growth of breast and prostate tumors.
Bone marrow-derived MSCs (BM-MSCs) were isolated and characterized. Effects of BM-MSCs on tumor cell proliferation were analyzed in a co-culture system with mouse breast cancer cell 4T1 or human prostate cancer cell DU145. Tumor cells were injected into nude mice subcutaneously either alone or coupled with BM-MSCs. The expression of cell proliferation and angiogenesis-related proteins in tumor tissues were immunofluorescence analyzed. The angiogenic effect of BM-MSCs was detected using a tube formation assay. The effects of the crosstalk between tumor cells and BM-MSCs on expression of angiogenesis related markers were examined by immunofluorescence and real-time PCR.
Both co-culturing with mice BM-MSCs (mBM-MSCs) and treatment with mBM-MSC-conditioned medium enhanced the growth of 4T1 cells. Co-injection of 4T1 cells and mBM-MSCs into nude mice led to increased tumor size compared with injection of 4T1 cells alone. Similar experiments using DU145 cells and human BM-MSCs (hBM-MSCs) instead of 4T1 cells and mBM-MSCs obtained consistent results. Compared with tumors induced by injection of tumor cells alone, the blood vessel area was greater in tumors from co-injection of tumor cells with BM-MSCs, which correlated with decreased central tumor necrosis and increased tumor cell proliferation. Furthermore, both conditioned medium from hBM-MSCs alone and co-cultures of hBM-MSCs with DU145 cells were able to promote tube formation ability of human umbilical vein endothelial cells. When hBM-MSCs are exposed to the DU145 cell environment, the expression of markers associated with neovascularization (macrophage inflammatory protein-2, vascular endothelial growth factor, transforming growth factor-beta and IL-6) was increased.
These results indicate that BM-MSCs promote tumor growth and suggest that the crosstalk between tumor cells and BM-MSCs increased the expression of pro-angiogenic factors, which may have induced tumor cell proliferation and angiogenesis thereby increasing solid tumor growth.
KeywordsMesenchymal Stem Cells Tumor Growth Angiogenesis
Tumor development and progression has been recognized as the product of an evolving crosstalk between different cell types within the tumor and its surrounding supporting tissue, or tumor stroma [1–3]. The tumor stroma is composed of extracellular matrix as well as a multitude of cell types such as fibroblasts and myofibroblasts, immune and inflammatory cells, adipocytes, pericytes and endothelial cells of the blood and lymphatic circulation . The mutual interactions between tumor cells and stromal cells via direct contact or through the production of growth factors, cytokines and chemokines in a paracrine manner are thought to modulate tumor expansion, invasion, metastasis and angiogenesis [2, 4–9]. As one of the most crucial components of the tumor microenvironment, carcinoma-associated fibroblasts (CAFs) have been shown to precede the onset of invasion and promote tumor cell survival as well as migratory properties . Various different mobilized cell types including normal fibroblasts, preadipocytes, epithelial cells and smooth muscle cells have been shown to be the sources of CAFs . Accumulating evidence from both human and mouse tumor models suggests that bone marrow-derived mesenchymal stem cells (BM-MSCs) have a significant contribution to CAF and myofibroblast populations within the tumor stroma [12–15].
Mesenchymal stem cells (MSCs) are multipotent adult stem cells of mesodermal germ layer origin that possess an innate ability for self-renewal and are capable of differentiating into a variety of mesodermal lineages, including chondrocytes, osteoblasts and adipocytes under proper experimental conditions in vitro and in vivo[16, 17]. The multilineage potential of MSCs plays an important role in wound healing and tissue regeneration through differentiation and the release of important growth factors and cytokines [18–20]. Secretion of chemokines/cytokines from the neoplasm or inflammatory tissues such as vascular endothelial growth factor (VEGF), transforming growth factors (TGFs), fibroblast growth factors (FGF), platelet-derived growth factors (PDGF) and interleukin-8 (IL-8) is known to promote the migration of MSCs from the bone marrow [21, 22]. Tumor/cancer is considered a wound that never heals and tumor microenvironments have many similarities with the tissue repair processes that attract specific homing of MSCs [23, 24]. The tumor homing properties of MSCs made them ideal candidates as anti-tumor agent delivery vehicles  and also attracted increased interest in understanding the role and fate of MSCs in tumor development and growth. Several studies have indicated that MSCs could enhance tumor growth and metastasis [26, 27]. Mishra and colleagues have demonstrated that, by prolonged exposure to tumor cell conditioned medium, MSCs could be activated, differentiated into CAFs and become part of the tumor microenvironment . To the contrary, there are studies indicating that MSCs also display intrinsic anticancer activities such as those in an in vivo model of Kaposi's sarcoma .
In most studies regarding the effect of MSCs on tumors, human tumor cells and human MSCs were used in mouse models. The stromal cells in this tumor xenograft model are thus from two different species. There may be some unknown interactions between the human and mouse cells that would affect the analysis. In this study, in addition to studying the effect of human bone marrow-derived mesenchymal stem cells (hBM-MSCs) on human prostate cancer growth, the mouse mammary tumor cell line 4T1 was selected to study the effect of mouse bone marrow-derived mesenchymal stem cells (mBM-MSCs) on tumor growth. For the latter, all cells used are of mouse origin and one can therefore interpret the results more clearly. We used luciferase-labeled tumor cells and co-cultured methods to access the tumor cell growth in vitro. We found that in both co-culture with mBM-MSCs and exposure to conditioned medium of mBM-MSCs, the proliferation of Luc-4T1 cells was promoted in vitro. Furthermore, with co-injection of mBM-MSCs with 4T1 cells into the nude mice, the tumor growth was enhanced. For the effect of hBM-MSCs on the growth of DU145 cells, we obtained consistent results. The underlying mechanism was also studied. We found that BM-MSCs could promote tumor growth through enhanced angiogenesis.
Materials and methods
The 4T1 mouse mammary tumor cell line was purchased from American Type Culture Collection and cultured in alpha-minimum essential medium (α-MEM, Manassas, Virginia, US) supplemented with 10% fetal bovine serum (FBS) and 1% penicillin–streptomycin–neomycin (complete culture medium; all from Invitrogen Corporation, Carlsbad, CA, USA). Human prostate cancer cell line DU145 was obtained from American Type Culture Collection and grown in RPMI 1640 medium supplemented with 10% FBS and 1% penicillin–streptomycin–neomycin.
Mouse skin fibroblasts were isolated from dorsal skin and cultured in complete α-MEM medium. For the primary culture of mBM-MSCs, bone marrow was flushed and harvest from the femur of 6-week-old to 8-week-old FVB mice. The cell suspension was then filtered and the bone marrow cells cultured in a 100 mm culture dish in α-MEM containing 20% FBS. After 3 days the nonadherent cells were removed by changing the medium; after an additional 4 to 7 days the culture becomes confluent, and when it reaches 70 to 80% confluence the adherent cells were trypsinized and subcultured. After three to five passages, a homogeneous cell population was obtained and used for further expansion and characterization. The mBM-MSCs were used at passage 5 in this study.
Human fetal bone marrow stem cells (hBM-MSCs) were donated from the Stem Cell Bank of the Prince of Wales Hospital of the Chinese University of Hong Kong. Human ethics approval was obtained from the Joint Chinese University of Hong Kong-New Territories East Cluster Clinical Research Ethics Committee (ethical approval code: CRE-2011.383). Informed written consent form was approved by the Clinical Research Ethics Committee and signed by donor before sample collection. 4T1 cells, DU145 cells stably expressing luciferase (Luc-4T1, Luc-DU145) and hBM-MSCs stably expressing GFP were kept in our laboratory.
Characterization of mouse bone marrow-derived MSCs
To identify the isolated cells, cell surface markers and differential potential were analyzed. Flow cytometric analysis was applied for examining the expression of surface antigens of the cells. Briefly, cells at passage 5 were harvested and cell suspensions containing 1 × 105 cells were stained with the fluorescence conjugated antibodies phycoerythrin-conjugated rat anti-mouse CD44, phycoerythrin-conjugated rat anti-mouse Sca-1, fluorescein isothiocyanate-conjugated rat anti-mouse CD45 and fluorescein isothiocyanate-conjugated rat anti-mouse CD34 (BD Pharmingen, Franklin Lakes, NJ, USA) for 1 hour at 4°C. After washing with PBS, the cells were resuspended in 0.5 ml stain buffer (BD Pharmingen) for flow cytometric analysis. Nonspecific background signals were measured by incubating the cells with the appropriate isotype control antibodies. The percentage of cells with a positive signal and the mean geometric fluorescence value of the positive population were calculated using the WinMDI Version 2.9 program (The Scripps Research Institute, La Jolla, CA, USA). For osteogenic differentiation, the cells at passage 5 were seeded in a six-well plate at a density of 4 × 103 cells/cm2 and cultured in the base complete medium for 2 or 3 days until they reached 80% confluence. The medium was then removed and replaced by osteogenic induction medium, which was complete medium supplemented with 1 nM dexamethasone, 50 mM l-ascorbic acid-2-phosphate, and 20 mM β-glycerolphosphate for 14 days (all from Sigma-Aldrich, St Louis, MO, USA). The induction medium was changed every 3 days. Cells cultured in the base complete medium were used as a negative control. Alizarin Red S staining is used for the assessment of calcium compound formation. For adipogenic differentiation, cells were plated at a density of 4 × 103 cells/cm2 in a six-well plate and cultured in base complete medium for 2 or 3 days until they reached 80% confluence. Afterwards the medium was removed and replaced by adipogenic medium, which was complete medium supplemented with 500 nM dexamethasone, 0.5 mM isobutyl-methylxanthine, 50 mM indomethacin, and 10 mg/ml insulin (all from Sigma-Aldrich). Cells cultured in the base complete medium served as a negative control. After 14 days of culture, 2% (wt/vol) Oil Red-O solution (Sigma-Aldrich) was applied to identify the presence of lipid-rich vacuoles. For chondrogenic differentiation, about 8 × 105 cells were pelleted into a micromass by centrifugation at 450 × g for 10 minutes in a 15 ml conical polypropylene tube and cultured in complete basal medium or chondrogenic medium, which contained LG-DMEM supplemented with 10 ng/ml TGF-β1 (Gibco, Invitrogen Corporation), 10–7 M dexamethasone, 50 μg/ml ascorbate-2-phosphate, 40 μg/ml proline, 100 μg/ml pyruvate (all from Sigma-Aldrich), and 1:100 diluted BD™-ITS Universal Culture Supplement Premix (Becton Dickinson, Franklin Lakes, NJ, USA). At day 21, the pellet was fixed for safranin-O/fast green staining.
In vitro cell proliferation assays
For investigation of the effect of BM-MSCs on proliferation of tumor cells, luciferase-labeled tumor cell line Luc-4T1 was co-cultured with either 4T1, mouse skin fibroblasts or mBM-MSCs in a 96-well black plate at a ratio of 1:1 in a density of 1.0 × 104/well in α-MEM containing 1% FBS. Similar experiments were conducted for Luc-DU145. Tumor cell proliferation was examined every 12 hours for a 72-hour period using the IVIS 200 in Vivo Imaging System (PerkinElmer, Waltham, MA, USA) according to the manufacturer’s instructions. Briefly, after removing the medium, the fresh medium containing d-luciferin (Biosynth, Itasca, IL, USA) at a concentration of 150 μg/ml was added. Prior to imaging examination, the plate was incubated at 37°C for 10 minutes. Bioluminescent images were acquired and the bioluminescent intensity was quantified in photons/second using Living Image 2.5 software (PerkinElmer) accordingly. For analyzing the dose–response effect of BM-MSCs on tumor cell proliferation, Luc-4T1 or Luc-DU145 cells were cultured alone or incubated with BM-MSCs at ratios of 1:0.2, 1:0.5, 1:1, 1:2, 1:5, 1:10 and 1:15. At the same time, Luc-4T1 or Luc-DU145 cells were incubated alone or in combination with mouse skin fibroblasts at different ratios as a control. After 48 hours of culture, the bioluminescent images were acquired and the bioluminescent intensity was quantified.
To investigate the effect of conditioned medium from BM-MSCs on tumor cell proliferation, conditioned medium was collected from mBM-MSCs and hBM-MSCs during the logarithmic growth phase. Briefly, BM-MSCs were plated in a 75 cm2 flask in 12 ml complete medium for 18 to 24 hours of culture, and when they reached preconfluence the medium was changed and the cells were rinsed in 1× PBS twice and cultured in fresh medium containing 1% FBS for an additional 3 days. The medium was then centrifuged at 1,000 × g for 10 minutes at 4°C for clarifying and the supernatant regarded as conditioned medium was collected and stored at −80°C for future use. To assess the tumor cell proliferation, Luc-4T1 or Luc-DU145 cells were seeded at 5.0 × 103 cells/well in a black 96-well plate in complete medium for 12 hours. Afterwards the medium was replaced by either conditioned medium collected from BM-MSCs or α-MEM containing 1% FBS. Tumor cell proliferation was assessed every 12 hours for a 96-hour period using the IVIS 200 in Vivo Imaging System. Tumor cell proliferation in the presence of conditioned medium from BM-MSCs was also assessed using the BrdU assay kit (Roche Applied Science, Penzberg, Upper Bavaria, Germany) according to the manufacturer’s instructions. 4T1 or DU145 cells were seeded at a density of 4 × 103 cells/cm2 in a 96-well plate and conditioned medium or α-MEM/1% FBS was replaced after 12 hours. After labeling with BrdU for 2 hours by adding BrdU labeling reagent into the medium, the cells were then fixed and incubated with anti-BrdU antibody that is peroxidase conjugated for 1 hour. Followed by washing with washing buffer, the substrate solution TMB was added and incubated for 5 minutes. The absorbance at 450 nm was measured and reported.
In vivo tumor growth analysis
After 21 days, nude mice were sacrificed using 20% overdose pentobarbital. The tumors were removed and cut into two pieces. One-half of the tumors were embedded in Optimal Cutting Temperature medium, frozen in liquid nitrogen, and stored at −80°C. The other tumors were fixed in formalin, dehydrated through increasing concentrations of ethanol and embedded in paraffin for immunochemistry.
For immunofluorescence staining, the frozen samples were cut into 5-μm sections using a cryostat microtome (Leica, Wetzlar, Hesse, Germany). The slides were fixed in 4% paraformaldehyde in PBS (pH 7.4) for 15 minutes at room temperature and washed with cold PBS. After treatment with PBS containing 0.25% Triton X-100 for 10 minutes for permeabilization, the samples were incubated with 5% normal goat serum/1% BSA/PBS for 30 minutes to block unspecific binding of the antibodies. Subsequently the slides were incubated with primary antibodies specific to CD31 (Abcam, Cambridge, UK) at 1:50, alpha smooth muscle actin (α-SMA; Abcam) at 1:100 and Ki67 (Abcam) at 1:200 overnight at 4°C, followed by PBS washing three times. Alexa Fluor 488-conjugated secondary antibody or Alexa Fluor 594-conjugated secondary antibody was incubated for 1 hour at room temperature (Invitrogen). ProLong Gold antifade reagent with DAPI (Invitrogen) was applied to mount and counterstain the slides. All of the fluorescence pictures were captured and analyzed under a fluorescent microscope (Zeiss-spot; Carl Zeiss MicroImaging GmbH, Jena, Thuringia, Germany). For quantification of the microvessel area, 10 fields at 200× were randomly selected from sections stained with CD31 antibody and the vessel area was measured using ImageJ software . For assessment of cell proliferation in vivo, the percentage of Ki-67-positive cells was calculated using the ImageJ software.
For cell immunofluorescence staining, hBM-MSCs were seeded in sterilized glass coverslips placed in a six-well plate. The cells were starved for 24 hours and treated with conditioned medium for 7 days or not. After removing the medium, the cells were fixed in 4% paraformaldehyde for 10 minutes at room temperature, washed with cold PBS twice, incubated with PBS containing 0.25% Triton X-100 for 10 minutes, blocked with 5% normal goat serum/1% BSA/PBS for 30 minutes and then incubated with primary antibodies for 2 hours at room temperature. Cells were immunostained for VEGF, TGF-β and IL-6 (all from Santa Cruz, Dallas, Texas, USA) at 1:100. Following PBS washing, the cells were incubated with Alexa Fluor 488-conjugated secondary antibody or Alexa Fluor 594-conjugated secondary antibody. Finally, all cells were mounted and counterstained with ProLong Gold antifade reagent with DAPI.
For immunochemistry, the paraffin blocking was cut into 5 μm sections and then deparaffinized and redehydrated. Subsequently the sections were incubated in 3% H2O2 solution in methanol at room temperature for 10 minutes to block endogenous peroxidase activity and, after rinsing in PBS twice, antigen retrieval was performed by arranging the sides in a stain container containing 10 mM citrate buffer (pH 6.0) at 95°C for 15 minutes. After cooling and washing, blocking buffer (5% normal goat serum/1% BSA/PBS) was added and incubated for 30 minutes at room temperature. The sections were then incubated with diluted primary antibodies anti-GFP (Abcam) at 1:1,000 overnight at 4°C. Followed by washing three times, horseradish peroxidase-conjugated rabbit anti-goat secondary antibodies were applied for 1 hour at room temperature. The substrate 3,3′-diaminobenzidine (Dako, Glostrup, Denmark) was used for color development. Sections were then rinsed in running tap water and counterstained with hematoxylin. The primary antibodies replaced by antibody diluent served as a negative control. At least five sections from each sample were analyzed.
Exposure of human bone marrow-derived MSCs to conditioned medium of tumor cells
DU145 cells were plated in 75 cm2 flasks in α-MEM containing 1% FBS. The tumor cell conditioned medium was harvested during their logarithmic growth phase, centrifuged at 1,000 × g for 10 minutes at 4°C for clarifying and stored at −80°C for subsequent use. Before exposure to conditioned medium, hBM-MSCs were serum-starved by cultured in serum-free α-MEM for 24 hours. Afterwards BM-MSCs were cultured in DU145 conditioned medium or α-MEM/1% FBS and the medium was changed every 2 days for the entire culturing period (7 days).
Tube formation assays
For assessment of angiogenic activity of interaction between BM-MSCs and tumor cells in vivo, tube formation assays were performed. Matrigel (100 μl; BD Pharmingen) was paved on a well of a 96-well plate and incubated for 1 hour at 37°C to allow the gel to solidify. Then 1.5 × 104 human umbilical vein endothelial cells were seeded in: base culture medium (α-MEM); hBM-MSC conditioned medium; DU145 cell conditioned medium; and hBM-MSCs co-cultured with DU145 conditioned medium at a final volume of 100 μl. All assays were independently performed six times for each group. After incubation for 8 hours, the cells were visualized using a light microscope. Endothelial tubule length was quantitatively analyzed using Image-Pro Plus software 6.0 (Media Cybernetics, Rockville, MD, USA).
RNA extraction and real-time quantitative PCR
The expression level of angiogenic factor was analyzed by quantitative real-time PCR. hBM-MSCs were co-cultured with DU145 using noncontacting co-culture transwell systems or were treated by conditioned medium from DU145. Cells cultured in α-MEM served as a control. After 7 days culturing, cells were harvested and RNA was extracted using an RNA extraction mini kit (Life Technologies, Carlsbad, CA, USA) according to the manufacturer’s instructions. Then 800 ng total RNA of each sample was reverse transcribed to cDNA by M-MLV Reverse Transcriptase (Life Technologies). Real-time PCR assays were performed on the ABI StepOne Plus system using Power SYBR® Green PCR Master Mix (Life Technologies) with 4 ng (10-fold dilutions) standard cDNA and 400 nM specific primers for IL-6, TGF-β, VEGF and macrophage inflammatory protein-2 (MIP-2). The sequences were as follows: IL-6, 5′-GGTACATCCTCGACGGCATCT-3′ (forward) and 5′-GTGCCTCTTTGCTGCTTTCAC-3′ (reverse); TGF-β, 5′-CCCAGCATCTGCAAAGCTC-3′ (forward) and 5′-GTCAATGTACAGCTGCCGCA-3′ (reverse); VEGF, 5′-CTACCTCCACCATGCCAAGT-3′ (forward) and 5′-GCAGTAGCTGCGCTGATAGA-3′ (reverse); and MIP-2, 5′-CGCCCAAACCGAAGTCAT-3′ (forward) and 5′-GATTTGCCATTTTTCAGCATCTTT-3′ (reverse). The amplification was performed under the following conditions: one cycle of denaturation at 95°C for 10 minutes, 40 cycles of denaturation at 95°C for 30 seconds, annealing at 60°C for 30 seconds, and extension 72°C for 30 seconds. Fluorescence data were acquired at the end of each annealing step. Finally, a melting curve was generated by increasing the temperature from 65 to 95°C. The expression of target gene was measured relative to that of GAPDH as housekeeping gene. The primers for amplify GAPDH were: 5′-AGGGCTGCTTTTAACTCTGGT-3′ (forward) and 5′-CCCCACTTGATTTTGGAGGGA-3′ (reverse). All samples were performed in triplicate.
Results are expressed as the mean ± standard deviation. Data were analyzed with GraphPad Prism statistical software 6.0 (GraphPad Software, La Jolla, CA, USA) using either one-way analysis of variance followed by Tukey’s post-hoc test or Student’s t test where appropriate. P <0.05 was considered statistically significant.
Characterization of bone marrow-derived MSCs
Co-culture with bone marrow-derived MSCs promotes proliferation of tumor cells in vitro
To further evaluate the effect of conditioned medium from BM-MSCs on the growth of tumor cells, conditioned medium was obtained from mBM-MSCs or hBM-MSCs and its effect on 4T1 or DU145 cell proliferation was tested respectively. Results from the BrdU assay indicated that, compared with culture in α-MEM, there was a 1.22-fold (P <0.01) increase in proliferation of 4T1 cells (Figure 2g) and a 1.17-fold increase (P <0.01) in DU145 cells (Figure 2h) in the presence of conditioned medium from mBM-MSCs or hBM-MSCs.

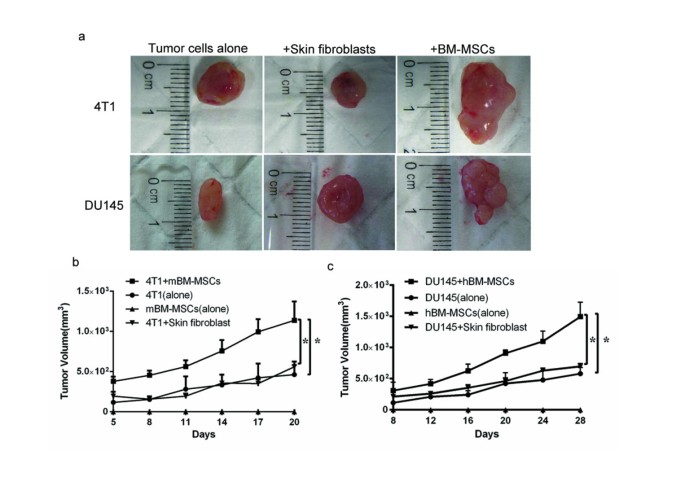

Bone marrow-derived MSCs promote tumor growth in vivo
Bone marrow-derived MSCs promote tumor cell proliferation and enhance tumor vascularization in vivo
For DU145 xenograft tumors, the immunofluorescence staining results revealed that the α-SMA-positive area was abundant in the center of DU145 + hBM-MSC tumors and there were also some α-SMA-positive cells present in the peripheral areas. On the contrary, the α-SMA-positive cells were much fewer both in the center and peripheral areas of the tumor in the DU145 alone group (Figure 6b). Quantification analysis showed that there was a significant increase in vessel area of tumors from mice injected with DU134 cells mixed with hBM-MSCs in comparison with tumors from mice injected with DU145 cells alone (P <0.05) (Figure 6d).
Conditioned medium from human bone marrow-derived MSCs co-cultured with DU145 cells increases capillary tube formation
Tumor cell conditioned medium enhances bone marrow-derived MSC angiogenic factor expression
Rapid tumor growth requires the recruitment of diverse stromal cells that constitute the tumor microenvironment. Paget originally proposed the concept that the stromal microenvironment plays a critical role in regulating tumor development in his ‘seed and soil’ hypothesis . Among the stromal cells, CAFs communicate with cancer cells to stimulate the tumor growth and metastatic potential, and also secrete a serious of cytokine or growth factors to enhance angiogenesis [4, 9]. Current evidence suggests that at least a proportion of CAFs are bone marrow derived, especially derived from bone marrow MSCs .
In the present study, BM-MSCs promoted tumor cell proliferation in vitro and tumor growth in vivo. However, such promotion was not associated with the number of BM-MSCs at the tumor sites. A similar finding has been reported in which MSCs promote Daudi tumor cell proliferation and protected them against apoptosis, which are partly mediated by MSC-derived soluble factors, and the maximal protective effect of MSCs on Daudi tumor cell apoptosis could be achieved by direct cell contact . In contrast, Khakoo and colleagues reported that MSCs exhibit potent antitumor effects in a model of Kaposi’s sarcoma and this effect is mediated by direct cell contact leading to the inhibition of Akt activation in KS cells . The different types of tumor models or sources of MSCs for assessment may be one of the factors accounting for the variability results of pro-tumorigenic or anti-tumorigenic effects. The effect of MSCs is thus context dependent and may be mediated through changes in soluble factors produced by the MSCs communicating with tumor cells in a paracrine manner [34, 35].
A number of studies have demonstrated that once MSCs are incorporated into the tumor mass, they contribute with other cells such as myofibroblasts, endothelial cells, pericytes, and inflammatory cells to create a microenvironment and influence the morphology and proliferation of cells within microenvironments [36, 37]. Of particular note is that angiogenesis is critical for tumor growth so that the blood vessel in the tumor environment could provide sufficient nutrients and oxygen to the cells, which are essential for the growth and survival of tumor cells . According to the study of Duffy and colleagues, MSCs played active roles in angiogenesis through regulating the formation, stabilization and maturation of newly formed vessels . We therefore hypothesize that enhanced angiogenesis may account for the tumor growth-promoting effects by BM-MSCs. In our study, the presence of BM-MSCs correlated with a higher abundance of blood vessels, suggesting that BM-MSCs in the tumor microenvironment contributed to promoting angiogenesis.
In addition, pericyte marker α-SMA  staining results suggested there was increased vascular pericyte coverage in the presence of BM-MSCs. Previous studies indicated that MSCs can function as pericyte-like cells in experimental gliomas that integrate into the tumor neovasculature . In our study, the numbers of BM-MSCs detected in the tumors could not account for the increased numbers of α-SMA-positive cells. BM-MSCs may thus play a role in recruiting endogenous pericyte progenitors that participate in the formation of functional tumor vessels . Furthermore, the in vitro effect of BM-MSCs on angiogenesis was shown in the tube formation assay. Collectively, these findings suggest that BM-MSCs may have the ability to potentially active angiogenesis in the tumor microenvironment. The promotion effect of MSCs on angiogenesis was consistent with a recent study by Hung and colleagues in which MSCs or factors secreted by MSCs have been shown to decrease apoptosis and enhance angiogenesis . Moreover, the interaction of MSCs with tumor cells to promote angiogenesis could also be found in human ovarian carcinoma cells and melanoma cancer cells [44, 45].
However, the mechanism of how MSCs stimulate angiogenesis remains to be elucidated. According to current study, we suggest that the enhancement of angiogenesis might partly attribute to the increased expression of angiogenic factors including TGF-β, VEGF, IL-6 and MIP-2 by hBM-MSCs when interacting with tumor cells. The well-established roles of these factors in promoting tumor angiogenesis strongly support our findings [46–49]. Similar to our results, Coffelt and colleagues reported that ovarian tumor-derived leucine, leucine-37 recruits MSCs to the tumor microenvironment and stimulated MSCs secreted larger amounts of pro-angiogenic factors including IL-1 receptor antagonist, IL-6, IL-10 and VEGF to support angiogenesis . Tsai and colleagues demonstrated that secretion of IL-6 by MSCs activated the signal transducer and activator of transcription-3 pathway in cancer cells and promoted tumor formation . Lin and colleagues reported that MSCs expressed higher levels of VEGF via the hypoxia-inducible factor-1α pathway, thus increasing tumor angiogenesis and leading to colon cancer growth in mice . These previous studies provided important clues to the molecular mechanisms underlying our findings in breast or prostate tumor models. Additionally, bedsides secretion of angiogenic factors, previous studies have demonstrated that MSCs may act as a component of tumor-associated fibrovascular networks, including the pericytic population that contributes to the microvessels involved in the neovascularization as well as the fibroblastic population that contributes to matrix remodeling and tumor growth. Nevertheless, the detailed characterization of the properties of MSCs in the tumor microenvironment merits further investigation.
In this study, we have demonstrated that BM-MSCs could promote tumor cell proliferation in vitro and tumor growth in vivo. The promotion effect may partly attribute to the increased expression of pro-angiogenic factors in BM-MSCs in the tumor microenvironment and subsequent enhancement in angiogenesis and tumor growth. Better understanding of the underlying mechanisms of interaction between tumor cells and MSCs could lead to establishment of new therapeutic approaches.
alpha-minimum essential medium
Alpha smooth muscle actin
Bone marrow-derived mesenchymal stem cell
Bovine serum albumin
Dulbecco’s modified Eagle’s medium
Fetal bovine serum
Green fluorescent protein
human bone marrow-derived mesenchymal stem cell
- H & E:
Hematoxylin and eosin
mouse bone marrow-derived mesenchymal stem cell
Macrophage inflammatory protein-2
Mesenchymal stem cell
Polymerase chain reaction
Transforming growth factor
Vascular endothelial growth factor.
This work is supported by a grant from National Natural Science Foundation of China (NSFC No. 81172177) to GL. These works were also supported in part by the National Basic Science and Development Programme (973 Programme, 2012CB518105) and SMART program seed funding, Institute of Innovative Medicine, The Chinese University of Hong Kong.
- Mbeunkui F, Johann DJ: Cancer and the tumor microenvironment: a review of an essential relationship. Cancer Chemother Pharmacol. 2009, 4: 571-582.View ArticleGoogle Scholar
- Lorusso G, Ruegg C: The tumor microenvironment and its contribution to tumor evolution toward metastasis. Histochem Cell Biol. 2008, 6: 1091-1103.View ArticleGoogle Scholar
- Bissell MJ, Radisky D: Putting tumours in context. Nat Rev Cancer. 2001, 1: 46-54. 10.1038/35094059.PubMedPubMed CentralView ArticleGoogle Scholar
- Orimo A, Gupta PB, Sgroi DC, Arenzana-Seisdedos F, Delaunay T, Naeem R, Carey VJ, Richardson AL, Weinberg RA: Stromal fibroblasts present in invasive human breast carcinomas promote tumor growth and angiogenesis through elevated SDF-1/CXCL12 secretion. Cell. 2005, 3: 335-348.View ArticleGoogle Scholar
- Karnoub AE, Dash AB, Vo AP, Sullivan A, Brooks MW, Bell GW, Richardson AL, Polyak K, Tubo R, Weinberg RA: Mesenchymal stem cells within tumour stroma promote breast cancer metastasis. Nature. 2007, 7162: 557-563.View ArticleGoogle Scholar
- Kim S, Takahashi H, Lin WW, Descargues P, Grivennikov S, Kim Y, Luo JL, Karin M: Carcinoma-produced factors activate myeloid cells through TLR2 to stimulate metastasis. Nature. 2009, 7225: 102-106.View ArticleGoogle Scholar
- Whiteside TL: The tumor microenvironment and its role in promoting tumor growth. Oncogene. 2008, 45: 5904-5912.View ArticleGoogle Scholar
- Tuxhorn JA, McAlhany SJ, Dang TD, Ayala GE, Rowley DR: Stromal cells promote angiogenesis and growth of human prostate tumors in a differential reactive stroma (DRS) xenograft model. Cancer Res. 2002, 11: 3298-3307.Google Scholar
- Guo X, Oshima H, Kitmura T, Taketo MM, Oshima M: Stromal fibroblasts activated by tumor cells promote angiogenesis in mouse gastric cancer. J Biol Chem. 2008, 28: 19864-19871.View ArticleGoogle Scholar
- Grugan KD, Miller CG, Yao Y, Michaylira CZ, Ohashi S, Klein-Szanto AJ, Diehl JA, Herlyn M, Han M, Nakagawa H, Rustgi AK: Fibroblast-secreted hepatocyte growth factor plays a functional role in esophageal squamous cell carcinoma invasion. Proc Natl Acad Sci U S A. 2010, 24: 11026-11031.View ArticleGoogle Scholar
- Kidd S, Spaeth E, Watson K, Burks J, Lu H, Klopp A, Andreeff M, Marini FC: Origins of the tumor microenvironment: quantitative assessment of adipose-derived and bone marrow-derived stroma. PLoS One. 2012, 2: e30563-View ArticleGoogle Scholar
- Mishra PJ, Humeniuk R, Medina DJ, Alexe G, Mesirov JP, Ganesan S, Glod JW, Banerjee D: Carcinoma-associated fibroblast-like differentiation of human mesenchymal stem cells. Cancer Res. 2008, 11: 4331-4339.View ArticleGoogle Scholar
- Direkze NC, Hodivala-Dilke K, Jeffery R, Hunt T, Poulsom R, Oukrif D, Alison MR, Wright NA: Bone marrow contribution to tumor-associated myofibroblasts and fibroblasts. Cancer Res. 2004, 23: 8492-8495.View ArticleGoogle Scholar
- Worthley DL, Ruszkiewicz A, Davies R, Moore S, Nivison-Smith I, Bik To L, Browett P, Western R, Durrant S, So J, Young GP, Mullighan CG, Bardy PG, Michael MZ: Human gastrointestinal neoplasia-associated myofibroblasts can develop from bone marrow-derived cells following allogeneic stem cell transplantation. Stem Cells. 2009, 6: 1463-1468.View ArticleGoogle Scholar
- Quante M, Tu SP, Tomita H, Gonda T, Wang SS, Takashi S, Baik GH, Shibata W, Diprete B, Betz KS, Friedman R, Varro A, Tycko B, Wang TC: Bone marrow-derived myofibroblasts contribute to the mesenchymal stem cell niche and promote tumor growth. Cancer Cell. 2011, 2: 257-272.View ArticleGoogle Scholar
- Uccelli A, Moretta L, Pistoia V: Mesenchymal stem cells in health and disease. Nat Rev Immunol. 2008, 9: 726-736.View ArticleGoogle Scholar
- Tan Q, Lui PP, Rui YF, Wong YM: Comparison of potentials of stem cells isolated from tendon and bone marrow for musculoskeletal tissue engineering. Tissue Eng Part A. 2012, 7–8: 840-851.View ArticleGoogle Scholar
- Chen L, Tredget EE, Wu PYG, Wu Y: Paracrine factors of mesenchymal stem cells recruit macrophages and endothelial lineage cells and enhance wound healing. PLoS One. 2008, 4: e1886-View ArticleGoogle Scholar
- Liew A, O'Brien T: Therapeutic potential for mesenchymal stem cell transplantation in critical limb ischemia. Stem Cell Res Ther. 2012, 4: 28-View ArticleGoogle Scholar
- Gharaibeh B, Lavasani M, Cummins JH, Huard J: Terminal differentiation is not a major determinant for the success of stem cell therapy-cross-talk between muscle-derived stem cells and host cells. Stem Cell Res Ther. 2011, 2: 31-10.1186/scrt72.PubMedPubMed CentralView ArticleGoogle Scholar
- Maxson S, Lopez EA, Yoo D, Danilkovitch-Miagkova A, LeRoux MA: Concise review: Role of mesenchymal stem cells in wound repair. Stem Cells Trans Med. 2012, 2: 142-149.View ArticleGoogle Scholar
- Wu Y, Zhao RC, Tredget EE: Concise review: bone marrow-derived stem/progenitor cells in cutaneous repair and regeneration. Stem Cells. 2010, 5: 905-915.Google Scholar
- Riss J, Khanna C, Koo S, Chandramouli GV, Yang HH, Hu Y, Kleiner DE, Rosenwald A, Schaefer CF, Ben-Sasson SA, Yang L, Powell J, Kane DW, Star RA, Aprelikova O, Bauer K, Vasselli JR, Maranchie JK, Kohn KW, Buetow KH, Linehan WM, Weinstein JN, Lee MP, Klausner RD, Barrett JC: Cancers as wounds that do not heal: differences and similarities between renal regeneration/repair and renal cell carcinoma. Cancer Res. 2006, 14: 7216-7224.View ArticleGoogle Scholar
- Dvorak HF: Tumors: wounds that do not heal. N Eng J Med. 1986, 26: 1650-1659.Google Scholar
- Chan J, O'Donoghue K, de la Fuente J, Roberts IA, Kumar S, Morgan JE, Fisk NM: Human fetal mesenchymal stem cells as vehicles for gene delivery. Stem Cells. 2005, 1: 93-102.View ArticleGoogle Scholar
- Shinagawa K, Kitadai Y, Tanaka M, Sumida T, Kodama M, Higashi Y, Tanaka S, Yasui W, Chayama K: Mesenchymal stem cells enhance growth and metastasis of colon cancer. Int J Cancer. 2010, 10: 2323-2333.View ArticleGoogle Scholar
- Yu JM, Jun ES, Bae YC, Jung JS: Mesenchymal stem cells derived from human adipose tissues favor tumor cell growth in vivo. Stem Cells Dev. 2008, 3: 463-473.View ArticleGoogle Scholar
- Khakoo AY, Pati S, Anderson SA, Reid W, Elshal MF, Rovira II, Nguyen AT, Malide D, Combs CA, Hall G, Zhang J, Raffeld M, Rogers TB, Stetler-Stevenson W, Frank JA, Reitz M, Finkel T: Human mesenchymal stem cells exert potent antitumorigenic effects in a model of Kaposi's sarcoma. J Exp Med. 2006, 5: 1235-1247.View ArticleGoogle Scholar
- ImageJ. [http://rsb.info.nih.gov/ij/]
- Song C, Xiang J, Tang J, Hirst DG, Zhou J, Chan KM, Li G: Thymidine kinase gene modified bone marrow mesenchymal stem cells as vehicles for antitumor therapy. Hum Gene Ther. 2011, 4: 439-449.View ArticleGoogle Scholar
- Scholzen T, Gerdes J: The Ki-67 protein: from the known and the unknown. J Cell Physiol. 2000, 3: 311-322.View ArticleGoogle Scholar
- Korkaya H, Liu S, Wicha MS: Breast cancer stem cells, cytokine networks, and the tumor microenvironment. J Clin Invest. 2011, 10: 3804-3809.View ArticleGoogle Scholar
- Roorda BD, Elst A, Boer TG, Kamps WA, de Bont ES: Mesenchymal stem cells contribute to tumor cell proliferation by direct cell-cell contact interactions. Cancer Invest. 2010, 5: 526-534.View ArticleGoogle Scholar
- Menge T, Gerber M, Wataha K, Reid W, Guha S, Cox CS, Dash P, Reitz MS, Khakoo AY, Pati S: Human mesenchymal stem cells inhibit endothelial proliferation and angiogenesis via cell-cell contact through modulation of the VE-Cadherin/beta-catenin signaling pathway. Stem Cells Dev. 2013, 1: 148-157.View ArticleGoogle Scholar
- Klopp AH, Gupta A, Spaeth E, Andreeff M, Marini F: Concise review: Dissecting a discrepancy in the literature: do mesenchymal stem cells support or suppress tumor growth?. Stem Cells. 2011, 1: 11-19.View ArticleGoogle Scholar
- Martin FT, Dwyer RM, Kelly J, Khan S, Murphy JM, Curran C, Miller N, Hennessy E, Dockery P, Barry FP, O'Brien T, Kerin MJ: Potential role of mesenchymal stem cells (MSCs) in the breast tumour microenvironment: stimulation of epithelial to mesenchymal transition (EMT). Breast Cancer Res Treat. 2010, 2: 317-26.View ArticleGoogle Scholar
- Roorda BD, ter Elst A, Kamps WA, de Bont ES: Bone marrow-derived cells and tumor growth: contribution of bone marrow-derived cells to tumor micro-environments with special focus on mesenchymal stem cells. Crit Rev Oncol Hematol. 2009, 3: 187-98.View ArticleGoogle Scholar
- Papetti M, Herman IM: Mechanisms of normal and tumor-derived angiogenesis. Am J Physiol Cell Physiol. 2002, 5: C947-C970.View ArticleGoogle Scholar
- Duffy GP, Ahsan T, O'Brien T, Barry F, Nerem RM: Bone marrow-derived mesenchymal stem cells promote angiogenic processes in a time- and dose-dependent manner in vitro. Tissue Eng Part A. 2009, 9: 2459-2470.View ArticleGoogle Scholar
- Armulik A, Abramsson A, Betsholtz C: Endothelial/pericyte interactions. Circ Res. 2005, 6: 512-523.View ArticleGoogle Scholar
- Bexell D, Gunnarsson S, Tormin A, Darabi A, Gisselsson D, Roybon L, Scheding S, Bengzon J: Bone marrow multipotent mesenchymal stroma cells act as pericyte-like migratory vehicles in experimental gliomas. Mol Ther. 2009, 1: 183-190.View ArticleGoogle Scholar
- Klopp AH, Zhang Y, Solley T, Amaya-Manzanares F, Marini F, Andreeff M, Debeb B, Woodward W, Schmandt R, Broaddus R, Lu K, Kolonin MG: Omental adipose tissue-derived stromal cells promote vascularization and growth of endometrial tumors. Clin Cancer Res. 2012, 3: 771-782.View ArticleGoogle Scholar
- Hung SC, Pochampally RR, Chen SC, Hsu SC, Prockop DJ: Angiogenic effects of human multipotent stromal cell conditioned medium activate the PI3K–Akt pathway in hypoxic endothelial cells to inhibit apoptosis, increase survival, and stimulate angiogenesis. Stem Cells. 2007, 9: 2363-2370.View ArticleGoogle Scholar
- McLean K, Gong Y, Choi Y, Deng N, Yang K, Bai S, Cabrera L, Keller E, McCauley L, Cho KR, Buckanovich RJ: Human ovarian carcinoma–associated mesenchymal stem cells regulate cancer stem cells and tumorigenesis via altered BMP production. J Clin Invest. 2011, 8: 3206-3219.View ArticleGoogle Scholar
- Sun B, Zhang S, Ni C, Zhang D, Liu Y, Zhang W, Zhao X, Zhao C, Shi M: Correlation between melanoma angiogenesis and the mesenchymal stem cells and endothelial progenitor cells derived from bone marrow. Stem Cells Dev. 2005, 3: 292-298.View ArticleGoogle Scholar
- Hicklin DJ, Ellis LM: Role of the vascular endothelial growth factor pathway in tumor growth and angiogenesis. J Clin Oncol. 2005, 5: 1011-1027.Google Scholar
- Keunen O, Johansson M, Oudin A, Sanzey M, Rahim SA, Fack F, Thorsen F, Taxt T, Bartos M, Jirik R, Miletic H, Wang J, Stieber D, Stuhr L, Moen I, Rygh CB, Bjerkvig R, Niclou SP: Anti-VEGF treatment reduces blood supply and increases tumor cell invasion in glioblastoma. Proc Natl Acad Sci U S A. 2011, 9: 3749-3754.View ArticleGoogle Scholar
- Nör JE, Christensen J, Mooney DJ, Polverini PJ: Vascular endothelial growth factor (VEGF)-mediated angiogenesis is associated with enhanced endothelial cell survival and induction of Bcl-2 Expression. Am J Pathol. 1999, 2: 375-384.View ArticleGoogle Scholar
- Sullivan NJ, Sasser AK, Axel AE, Vesuna F, Raman V, Ramirez N, Oberyszyn TM, Hall BM: Interleukin-6 induces an epithelial–mesenchymal transition phenotype in human breast cancer cells. Oncogene. 2009, 33: 2940-2947.View ArticleGoogle Scholar
- Coffelt SB, Marini FC, Watson K, Zwezdaryk KJ, Dembinski JL, LaMarca HL, Tomchuck SL, Honer-zu-Bentrup K, Danka ES, Henkle SL, Scandurro AB: The pro-inflammatory peptide LL-37 promotes ovarian tumor progression through recruitment of multipotent mesenchymal stromal cells. Proc Natl Acad Sci U S A. 2009, 10: 3806-3811.View ArticleGoogle Scholar
- Tsai KS, Yang SH, Lei YP, Tsai CC, Chen HW, Hsu CY, Chen LL, Wang HW, Miller SA, Chiou SH, Hung MC, Hung SC: Mesenchymal stem cells promote formation of colorectal tumors in mice. Gastroenterology. 2011, 3: 1046-1056.View ArticleGoogle Scholar
- Liu Y, Han ZP, Zhang SS, Jing YY, Bu XX, Wang CY, Sun K, Jiang GC, Zhao X, Li R, Gao L, Zhao QD, Wu MC, Wei LX: Effects of inflammatory factors on mesenchymal stem cells and their role in the promotion of tumor angiogenesis in colon cancer. J Biol Chem. 2011, 28: 25007-25015.View ArticleGoogle Scholar
